Indian Bullet Spares Catalogue - Air Filter System
Old Style -
New Style - Resonator
- Pulse Air Valve &
Breather Box
Please Note: When ordering parts please quote:
Part No. and number required, model, year and country type (Royal Enfield
exports the following main country types: Indian, European and USA/Canada).
Differences between models are indicated.
Once you have decided on your requirements email
us.

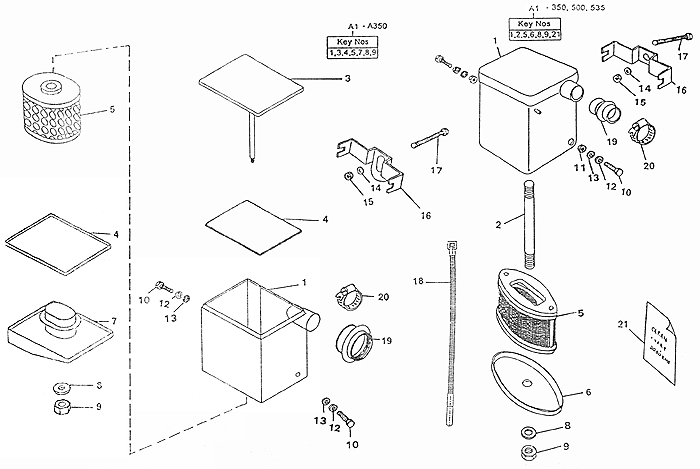

Old Style
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| A1 |
112057 |
Air Filter Assembly |
1 |
|
|
• |
|
• |
|
|
|
|
|
|
|
| 500727 |
Air Filter Assembly |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 170462 |
Air Filter Assembly, Plated |
1 |
|
|
|
|
|
|
|
• |
• |
• |
|
|
| 801131 |
Air Filter Assembly, Black |
1 |
• |
• |
|
|
|
|
|
|
|
|
|
|
| 802020 |
Air Filter Assembly, P.O. Red |
1 |
|
• |
|
|
|
|
|
|
|
|
|
|
| 803013 |
Air Filter Assembly, Peacock Blue |
1 |
|
• |
|
|
|
|
|
|
|
|
|
|
| 806050 |
Air Filter Assembly, Athena Gray |
1 |
|
|
|
|
|
|
• |
|
|
|
|
|
| 1 |
801002 |
Air Filter Body, Black |
1 |
• |
• |
|
|
|
|
|
|
|
|
|
|
| 802001 |
Air Filter Body, P.O. Red |
1 |
|
• |
|
|
|
|
|
|
|
|
|
|
| 803001 |
Air Filter Body, Peacock Blue |
1 |
|
• |
|
|
|
|
|
|
|
|
|
|
| 806001 |
Air Filter Body, Athena Gray |
1 |
|
|
|
|
|
|
• |
|
|
|
|
|
| 112058 |
Air Filter Body, Plated |
1 |
|
|
• |
|
• |
|
|
|
|
|
|
|
| 500728 |
Air Filter Body, Plated |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 170461 |
Air Filter Body, Plated |
1 |
|
|
|
|
|
|
|
• |
• |
• |
|
|
| 2 |
110671 |
Stud - Air filter |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 3 |
500729 |
Cover, Air Filter |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 4 |
500741 |
Gasket, Air Filter Cover |
2 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 5 |
112161 |
Air Filter Element |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500702 |
Air Filter Element |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 6 |
801001 |
Element Retainer, Black |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 7 |
500755 |
Air Filter Intake Box |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 8 |
110656 |
Spring Washer |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 9 |
110663 |
Nut |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 10 |
142274 |
Screw, Air Filter housing |
2 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 11 |
141060 |
Nut |
2 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 12 |
141061 |
Washer |
2 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 13 |
140129 |
Washer, Shake proof |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 14 |
140147 |
Washer, Shake proof |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 15 |
141051 |
Nut |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 141054 |
Nut |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 16 |
801066 |
Bracket - Air filter |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500740 |
Bracket - Air filter |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 17 |
111901/A |
Bolt M8 |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 18 |
500719 |
Strap, Air Filter hose |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 19 |
141829 |
Bellows, Air Filter to Carburetor |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500750 |
Hose, Air Filter to Carburetor |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 20 |
141655 |
Clip, Hose |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500712 |
Clip, Hose |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 21 |
110414 |
Sticker |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
[top]

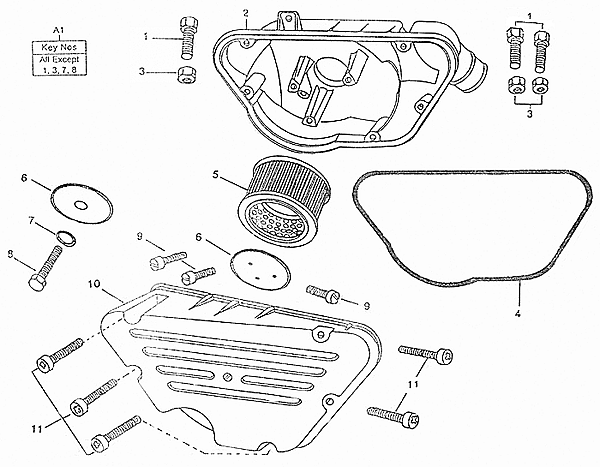

New Style
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| A1 |
521096 |
Air Filter Assembly |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 1 |
142258 |
Hex Screw M8 x 16 |
3 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 2 |
521091 |
Air Filter Body |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 3 |
141051 |
Hex Nut M8 |
3 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 4 |
521129/A |
'O' Ring |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 5 |
143458/A |
Air Filter Element |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 521172/A |
Air Filter Element |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 6 |
801161 |
Retainer, Top |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 521093 |
Cover, Filter Element |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 7 |
141061 |
Washer |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 8 |
141462/3 |
Hex Bolt |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 9 |
142095 |
Slotted Cheese Head Screw M5 x 18 |
3 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 10 |
521092/D |
Lid - Air Filter |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 11 |
521125 |
Cross Recessed Pan Head Screw M5 x 25 |
5 |
|
|
|
|
|
|
|
|
|
|
• |
|
[top]

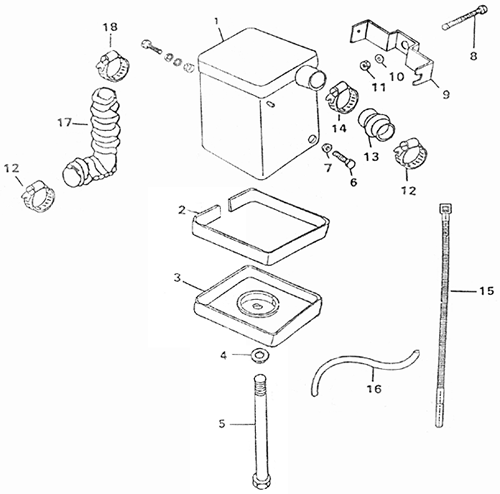

Resonator
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| 1 |
801267 |
Resonator box |
1 |
• |
• |
|
|
|
|
|
|
|
|
|
|
| 145448/A |
Resonator box |
1 |
|
|
• |
• |
• |
|
|
|
|
|
|
|
| 145554/B |
Resonator box |
1 |
|
|
|
|
|
• |
|
• |
• |
• |
|
|
| 806015 |
Resonator box |
1 |
|
|
|
|
|
|
• |
|
|
|
|
|
| 2 |
145456/A |
Beading |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 3 |
801127 |
Bottom Cover |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 4 |
141061 |
Plain Washer |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 5 |
143541 |
Hex Screw M6 x 27 |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 6 |
142274 |
Hex Screw |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 7 |
140129 |
Washer |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 8 |
111901/A |
Hex Screw |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 9 |
801066 |
Bracket |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 10 |
140147 |
Washer |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 11 |
141051 |
Nut |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 12 |
500711 |
Hose Clip |
3 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500711 |
Hose Clip |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 13 |
141829 |
Connection tube |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500750 |
Bellows |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 500823/A |
Bellows |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 14 |
500712 |
Hose Clip |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 15 |
500719 |
Strap |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 16 |
370169 |
Pipe |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 17 |
143497 |
Connection pipe |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 18 |
142179 |
Hose Clip |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
[top]

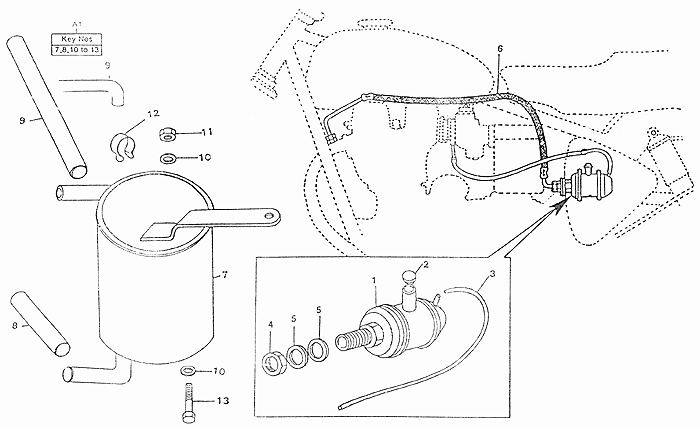

Pulse Air Valve & Breather Box
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| A1 |
560151/B |
Breather Box Assembly |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
For Mach, After July 2002 |
| 500444 |
Breather Box Assembly |
1 |
|
|
|
|
|
|
• |
|
|
|
|
Before July 2002 |
| 521171 |
Breather Box Assembly |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 1 |
144187 |
Pulse Air Valve Assembly |
1 |
|
|
|
|
|
|
• |
• |
• |
|
|
|
| 2 |
144187 |
Dummy Cap |
1 |
|
|
|
|
|
|
• |
• |
• |
|
|
|
| 3 |
144149 |
Tube, Pulse Air Valve |
1 |
|
|
|
|
|
|
• |
• |
• |
|
|
|
| 4 |
144150 |
Lock Nut |
1 |
|
|
|
|
|
|
• |
• |
• |
|
|
|
| 5 |
141234 |
Spacer |
2 |
|
|
|
|
|
|
• |
• |
• |
|
|
|
| 6 |
144151 |
Braided Hose |
1 |
|
|
|
|
|
|
• |
• |
• |
|
|
|
| 7 |
560158 |
Breather Box |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
For Mach, After July 2002 |
| 8 |
145455/B |
Breather Pipe, Short |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500108 |
Breather Pipe, Short |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 521161 |
Breather Pipe, Short |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 9 |
560156/B |
Breather Pipe, Long |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 500127 |
Breather Pipe, Long (Old oil circuit) |
1 |
|
|
|
|
|
• |
|
|
|
|
|
Before July 2002 |
| 500126/A |
Breather Pipe, Long (New oil circuit) |
1 |
|
|
|
|
|
• |
|
|
|
|
|
After July 2002 |
| 500128/A |
Breather Pipe, Long |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 10 |
143496 |
Washer |
2 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 11 |
141060 |
Hex Nut M6 |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 12 |
140573 |
Clip, Hose |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 13 |
141093 |
Hex Screw |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
