Indian Bullet Spares Catalogue - Chain Case
Chain Case Inner
- Drive Cover and
Sprag Clutch Assembly - Alternator
- Clutch - Chain
Case Outer
Please Note: When ordering parts please quote:
Part No. and number required, model, year and country type (Royal Enfield
exports the following main country types: Indian, European and USA/Canada).
Differences between models are indicated.
Once you have decided on your requirements email
us.
Chain Case Inner
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| 1 |
111889 |
Chain Case Inner (Inches) |
1 |
• |
• |
• |
• |
|
|
• |
|
|
|
|
Before Mar 2002 |
| 145166/1 |
Chain Case Inner (Metric) |
1 |
• |
• |
• |
• |
|
|
• |
|
|
|
|
After Mar 2002 |
| 145463/A |
Chain Case Inner |
1 |
|
|
|
|
• |
|
|
|
|
|
|
|
| 500918 |
Chain Case Inner |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 170289 |
Chain Case Inner (Inches) |
1 |
|
|
|
|
|
|
|
• |
• |
|
|
Before Mar 2002 |
| 145167/1 |
Chain Case Inner (Metric) |
1 |
|
|
|
|
|
|
|
• |
• |
|
|
After Mar 2002 |
| 560112/A |
Chain Case Inner Assy |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 510946 |
Chain Case Inner |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 2 |
144621 |
Gasket - Crank case to Chain case |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
|
| 560052/A |
Gasket - Crank case to Chain case |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 3 |
144752 |
Grommet |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
|
|
|
| 500940 |
Grommet |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 4 |
144624 |
Gasket - Oil Seal Adaptor |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 550190/C |
Gasket - Oil Seal Adaptor |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 5 |
111888 |
Oil Seal Adaptor |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 550116/A |
Oil Seal Adaptor |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 6 |
140290 |
Screw - Oil Seal Adaptor |
4 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 7 |
111334 |
Stud - Stator Fixing |
3 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 500919 |
Stud - Stator Fixing |
3 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 8 |
140312 |
Stud - Chain case fixing (Inches) |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
Before May 2000 |
| 144286/A |
Stud - Chain case fixing (Metric) |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
After May 2000 |
| 560019/A |
Hex Socket Screw |
3 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 9 |
111866 |
Retainer - Crankcase |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
|
| 10 |
140147 |
Washer - Shake proof |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
|
| 11 |
140079 |
Nut - for fixing Chain case (Inches) |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
Before May 2000 |
| 141051 |
Nut - for fixing Chain case (Metric) |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
After May 2000 |
| 12 |
140278 |
Dowel pin - Chain case |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 13 |
141245 |
Stud - Chain Tensioner (Inches) |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
• |
|
| 144287/A |
Stud - Chain Tensioner (Metric) |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
Before May 2000 |
| 500963 |
Stud - Chain Tensioner |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
After May 2000 |
| 14 |
140437 |
Washer |
2 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 140293 |
Washer |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 15 |
140191 |
Nut (Inches) |
2 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
Before May 2000 |
| 141051 |
Nut (Metric) |
2 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
After May 2000 |
| 141051 |
Nut |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 16 |
120521 |
Nut |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 17 |
110201 |
Screw - Adjusting |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 18 |
140277 |
Stud, Chain case cover fixing (Inches) |
1 |
• |
• |
• |
• |
|
|
• |
|
|
|
|
Before Mar 2002 |
| 145163/A |
Stud, Chain case cover fixing (Metric) |
1 |
• |
• |
• |
• |
|
|
• |
|
|
|
|
After Mar 2002 |
| 170370 |
Stud, Chain case cover fixing (Inches) |
1 |
|
|
|
|
• |
• |
|
• |
• |
• |
• |
Before Mar 2002 |
| 170548/A |
Stud, Chain case cover fixing (Metric) |
1 |
|
|
|
|
• |
• |
|
• |
• |
• |
• |
After Mar 2002 |
| 19 |
113007 |
Chain Duplex |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 20 |
110056 |
Distance Piece - Engine Sprocket |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 21 |
110221 |
Engine Sprocket 25T |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
|
| 22 |
140938 |
Pad, Chain Tensioner |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 23 |
141246 |
Bush, Chain Tensioner Pad |
|
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 500961 |
Bush, Chain Tensioner Pad |
|
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 24 |
560015/A |
Bush |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 25 |
550102 |
Oil Seal |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
[top]
Drive Cover and Sprag Clutch Assembly
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| A1 |
560042/A |
Sprag Clutch Ass. |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 1 |
500632 |
Hex Socket Head Cap Screw M5 x 20 |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 2 |
560128/A |
Drive Cover |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 3 |
550094/A |
Dowel |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 4 |
560015/A |
Bush |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 5 |
560129/A |
Drive Cover Ass. |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 6 |
560005/A |
Gasket |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 7 |
560014/B |
Idler Gear |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 8 |
560016/A |
Needle Bearing |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 9 |
560017/B |
Gear, Clutch Driven |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 10 |
560011/A |
Sprag Clutch |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 11 |
560010/B |
Circlip |
3 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 12 |
560008/B |
Gear, Clutch Driving Ass. |
2 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 13 |
560009/B |
Spindle |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 14 |
560018/B |
Sprocket/Gear |
3 |
|
|
|
|
|
|
|
|
|
• |
|
|
[top]
Alternator
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| A1 |
170413 |
Alternator Set - 12V AC/DC |
1 |
• |
• |
• |
• |
|
|
• |
• |
|
|
|
|
| 500960/D |
Alternator Set - 12V AC/DC |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 560045 |
Alternator Set - 12V AC/DC |
1 |
|
|
|
|
|
|
|
|
• |
• |
|
|
| 1 |
170536 |
Stator Assembly - 12V AC/DC |
1 |
• |
• |
• |
• |
|
|
• |
• |
|
|
|
|
| 500953/I |
Stator Assembly - 12V AC/DC |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 560047 |
Stator Assembly - 12V AC/DC |
1 |
|
|
|
|
|
|
|
|
• |
• |
|
|
| 2 |
143766 |
Rotor Assembly |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 500959/E |
Rotor Assembly |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 3 |
140318 |
Lock Washer - Rotor |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 4 |
140317 |
Nut - Rotor |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 500923/B |
Nut - Rotor |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 5 |
500916 |
Spacer |
3 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 500965 |
Spacer |
2 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 6 |
141722 |
Spacer |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 7 |
142604 |
Lock Washer - Stator Fixing |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 8 |
151910 |
Nut - For Fixing Stator |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 9 |
151910 |
Distance piece - Alternator |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 145438/B |
Reluctor Disc |
1 |
|
|
|
|
• |
|
|
|
|
|
|
|
| 500969 |
Reluctor Disc |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 10 |
500968 |
Pulser Coil |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 11 |
500917 |
Cable Tie |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 12 |
500967 |
Spacer - Above Pulser Holder |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
[top]

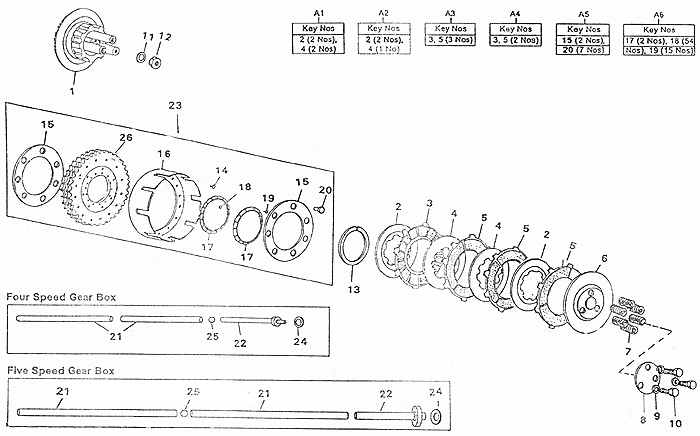

Clutch
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| A1 |
597051 |
Alternator Set - 12V AC/DC |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| A2 |
112055 |
Alternator Set - 12V AC/DC |
1 |
• |
• |
• |
|
|
|
|
|
|
|
|
|
| A3 |
597050 |
Alternator Set - 12V AC/DC |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| A4 |
141992 |
Stator Assembly - 12V AC/DC |
1 |
• |
• |
• |
|
|
|
|
|
|
|
|
|
| A5 |
144291 |
Stator Assembly - 12V AC/DC |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| A6 |
144292 |
Stator Assembly - 12V AC/DC |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 1 |
144496 |
Clutch Centre & Back Plate Ass. |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 550501/A |
Clutch Centre & Back Plate Ass. |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 2 |
144461 |
Steel plate, Dished |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 3 |
144459 |
Friction plate (Insert Type) |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 4 |
144460 |
Steel plate, plain |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 5 |
144458 |
Friction plate (Bonded) |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 6 |
144463 |
Clutch Front Plate |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 7 |
144138 |
Spring |
6 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 8 |
140349 |
Clutch Cap |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 9 |
140129 |
Lock Washer |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 10 |
140321 |
Screw - Clutch Cap |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 11 |
140346 |
Spring Washer |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 12 |
140769 |
Nut Nylock - Main Shaft |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 13 |
111143 |
Retaining Spring |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 14 |
111138 |
Rivets, Clutch Sprocket & Drum |
15 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 15 |
140751 |
Friction disc |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 16 |
142195 |
Drum, 4 plate Clutch |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 111154 |
Drum, 3 plate Clutch |
1 |
• |
• |
• |
|
|
|
|
|
|
|
|
|
| 17 |
111155 |
Cage, Clutch Ball |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 18 |
140107 |
Balls 3/16" |
54 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 19 |
111137 |
Rivets, Ball Cage |
15 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 20 |
140752 |
Rivets - Friction Disc |
7 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 21 |
144497 |
Clutch Rod |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 550055 |
Clutch Rod |
2 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 22 |
144464 |
Clutch Pad |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 550053 |
Clutch Pad |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 23 |
144495 |
Sprocket & Drum Ass. (4 plate clutch) |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 111134 |
Sprocket & Drum Ass. (3 plate clutch) |
1 |
• |
• |
• |
|
|
|
|
|
|
|
|
|
| 24 |
144465 |
Bearing Washer |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 25 |
140201 |
Ball 1/4" |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
|
| 550143 |
Ball, 5 Dia |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 26 |
144456 |
Sprocket |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
[top]

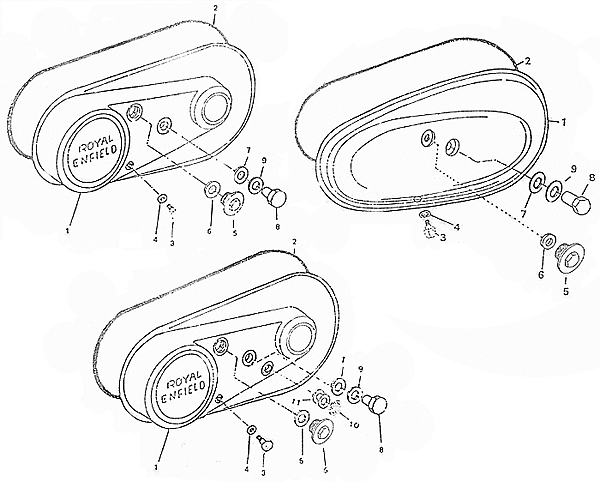

Chain Case Outer
