Indian Bullet Spares Catalogue - Electrics
Battery and Harness
- Switches and Fitments
Please Note: When ordering parts please quote:
Part No. and number required, model, year and country type (Royal Enfield
exports the following main country types: Indian, European and USA/Canada).
Differences between models are indicated.
Once you have decided on your requirements email
us.

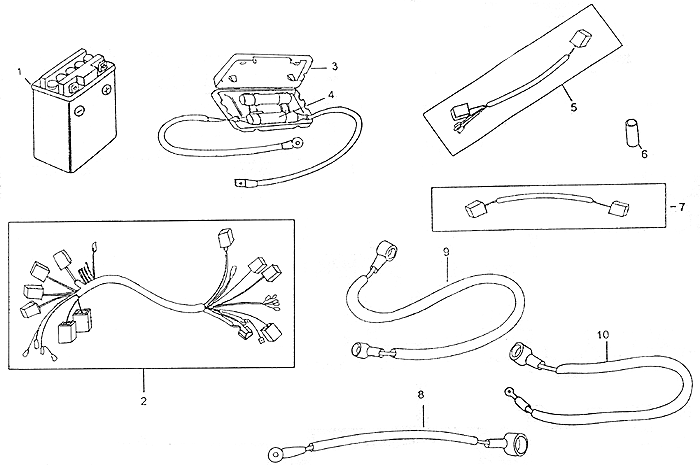

Battery and Harness
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| 1 |
141433 |
Battery 12V, 5 AH |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
• |
|
| 560030 |
Battery 12V, 14 AH |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 2 |
144586/E |
Main Cable Harness |
1 |
• |
• |
• |
• |
|
|
• |
|
|
|
|
After July 2002 |
| 500970/C |
Main Cable Harness |
1 |
|
|
|
|
• |
• |
|
|
|
|
|
Before July 2002 |
| 170517 |
Main Cable Harness |
1 |
|
|
|
|
|
|
|
• |
• |
|
|
|
| 560055/A |
Main Cable Harness |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 521004 |
Main Cable Harness |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 3 |
145267/A |
Fuse Assembly |
1 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 142930 |
Fuse Assembly |
1 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 4 |
145268 |
Fuse 20 Amps |
2 |
• |
• |
• |
• |
• |
|
• |
• |
• |
• |
|
|
| 142933 |
Fuse 20 Amps |
2 |
|
|
|
|
|
• |
|
|
|
|
|
|
| 5 |
144352 |
Wiring Harness, Tail Light |
1 |
• |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
| 560144/A |
Wiring Harness, Tail Light |
1 |
|
|
|
|
|
|
|
• |
• |
• |
• |
|
| 6 |
140714 |
Snap on Connector |
1 |
• |
• |
• |
• |
• |
|
• |
|
|
|
|
|
| 7 |
143881 |
Add on Lead, Horn |
1 |
|
|
• |
• |
• |
• |
|
|
|
|
|
|
| 8 |
560035/B |
Cable |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 9 |
560069/B |
Cable |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 10 |
560070/B |
Cable |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
[top]
Switches and Fitments
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| 1 |
145375 |
Common Key Set |
1 |
• |
• |
• |
• |
• |
• |
• |
|
|
|
|
Before Sept 2002 |
| 500976/B |
Common Key Set |
1 |
• |
• |
• |
• |
• |
• |
• |
|
|
|
|
After Sept 2002 |
| 170559/A |
Common Key Set |
1 |
|
|
|
|
|
|
|
• |
• |
• |
|
|
| 521153/A |
Common Key Set |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 2 |
144519 |
Bracket, Flasher Mounting |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 3 |
140438 |
Grommet |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 4 |
141093 |
Bolt |
2 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 5 |
124559 |
Ignition Coil |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 6 |
140129 |
Washer |
2 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 7 |
141060 |
Nut |
2 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 8 |
144349 |
Flasher Unit |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 9 |
143777 |
AC Regulator |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 10 |
112242 |
Regulator |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 11 |
112241 |
Rectifier |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 12 |
145377 |
Regulator cum Rectifier |
1 |
• |
• |
• |
• |
|
|
• |
• |
|
|
|
|
| 560140 |
Regulator cum Rectifier |
1 |
|
|
|
|
|
|
|
|
• |
• |
|
|
| 13 |
142274 |
Screw |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 14 |
142127 |
Washer |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 15 |
140149 |
H. T. Lead |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 16 |
144059 |
Cap, Spark Plug |
1 |
• |
• |
• |
• |
|
|
• |
• |
• |
• |
|
|
| 500905 |
Cap Suppressor, Spark Plug |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 17 |
141148 |
Spark Plug |
1 |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
|
| 500904 |
Spark Plug |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 144607/A |
Spark Plug |
1 |
|
|
|
|
|
|
• |
• |
|
|
• |
|
| 142773 |
Spark Plug |
1 |
|
|
|
|
|
|
|
|
• |
• |
|
|
| 18 |
141732 |
Horn, High Tone |
1 |
• |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
| 142309 |
Horn |
1 |
|
|
|
|
|
|
|
• |
• |
• |
|
|
| 521117/A |
Horn, High Tone |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 19 |
141733 |
Horn, Low Tone |
1 |
|
|
• |
• |
• |
• |
|
|
|
|
|
|
| 521120/A |
Horn, Low Tone |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 20 |
500975 |
Capacitor |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 21 |
145510/A |
Series Integral Regulator |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 22 |
500974 |
Resistor |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 23 |
560013 |
Starter Motor Assembly |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 24 |
140083 |
Plain Washer |
2 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 25 |
560023 |
Screw |
2 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 26 |
560132/A |
Relay Starter |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 27 |
560111/A |
Auto Starter Cut Off |
1 |
|
|
|
|
|
|
|
|
|
• |
|
|
| 28 |
145143 |
Steering lock mounting screw |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
[top]
|
