Frame
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 801270 | Frame (Steering lock on RH side) | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 801017 | Frame (Pad lock type) | 1 | • | • | • | • | • | • | • | ||||||
| 801298 | Frame | 1 | • | ||||||||||||
| 2 | 801076 | Cover Plate RH | 1 | • | • | • | • | ||||||||
| 3 | 801075 | Cover Plate LH | 1 | • | • | • | |||||||||
| 801243 | Cover Plate LH | 1 | • | ||||||||||||
| 4 | 144604 | Support, Seat | 1 | • | • | • | • | • | • | • | |||||
| 521116/C | Support, Seat | 2 | • | ||||||||||||
| 5 | 143843 | Grommet | 1 | • | • | • | |||||||||
| 6 | 140762 | Stud Gear Box Plate, Top | 1 | • | • | ||||||||||
| 142242 | Stud Gear Box Plate, Top | 1 | • | • | • | • | • | • | • | • | • | ||||
| 7 | 140306 | Washer | 6 | • | • | • | • | • | • | • | • | • | • | • | |
| 8 | 120332 | Hex Nut | 2 | • | • | ||||||||||
| 142232 | Nylock Nut | 2 | • | • | • | • | • | • | • | • | • | ||||
| 9 | 801216 | Engine Plate RH | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 111998 | Engine Plate RH | 1 | • | ||||||||||||
| 10 | 110220 | Hex Nut | 4 | • | • | • | • | ||||||||
| 110220 | Hex Nut | 2 | • | • | • | • | • | ||||||||
| 110220 | Hex Nut | 3 | • | ||||||||||||
| 11 | 142232 | Nylock Nut | 2 | • | • | • | • | • | • | • | • | ||||
| 12 | 801019 | Spacer, Centre Stand | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 13 | 801217 | Engine Plate LH | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 111999 | Engine Plate LH | 1 | • | ||||||||||||
| 14 | 110210 | Engine Plate Stud | 1 | • | • | • | • | • | • | • | • | • | • | • | Before July 2001 |
| 145417/A | Engine Plate Stud | 1 | • | • | • | • | • | • | • | • | • | • | • | After July 2001 | |
| 15 | 140293 | Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 16 | 140302 | Hex Nut | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 17 | 110215 | Stud, Engine Plate | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 18 | 110214 | Stud, Front Engine Plate | 1 | • | • | ||||||||||
| 142240 | Stud, Front Engine Plate | 1 | • | • | • | • | • | • | • | • | |||||
| 560092/A | Hex Bolt, Front Engine Plate | 1 | • | ||||||||||||
| 19 | 141057 | Stud, Gear Box Top | 2 | • | • | • | • | • | • | • | • | • | • | • | For Thunderbird, Before Oct 2002 |
| 145772/A | Hex Head bolt M8 x 118 | 2 | • | After Oct 2002 | |||||||||||
| 20 | 140147 | Lock Washer | 4 | • | • | • | • | • | • | • | • | • | • | • | For Thunderbird, Before Oct 2002 |
| 21 | 141051 | Nut | 6 | • | • | • | • | • | • | • | • | • | • | • | For Thunderbird, Before Oct 2002 |
| 142182 | Nut, Nylock | 3 | • | After Oct 2002 | |||||||||||
| 22 | 801020 | Gear Box Plate | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 23 | 801257 | Engine Plate LH | 1 | • | • | • | • | • | • | • | • | Old Type | |||
| 560107/A | Engine Plate LH, Powder coated | 1 | • | • | • | • | • | • | • | • | New Type | ||||
| 560108/A | Engine Plate LH, Plated | 1 | • | • | • | ||||||||||
| 24 | 801256 | Engine Plate RH | 1 | • | • | • | • | • | • | • | • | Old Type | |||
| 560109/A | Engine Plate RH, Powder coated | 1 | • | • | • | • | • | • | • | • | New Type | ||||
| 560110/A | Engine Plate RH, Plated | 1 | • | • | • | ||||||||||
| 25 | 145554/A | Bracket | 1 | • | • | • | • | • | |||||||
| 26 | 500359 | Sleeve | 1 | • | • | ||||||||||
| 140441 | Sleeve | 1 | • | • | • | • | |||||||||
| 27 | 140435 | Eye Bolt | 1 | • | • | • | • | • | • | ||||||
| 28 | 140302 | Hex Nut | 1 | • | • | • | • | • | • | ||||||
| 29 | 140080 | Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | For Thunderbird, Before Oct 2002 |
| 140080 | Washer | 5 | • | After Oct 2002 | |||||||||||
| 30 | 141058 | Stud | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 500827 | Stud | 1 | • | Before Oct 2002 | |||||||||||
| 145774/A | Hex Head Bolt M8 x 85 | 1 | • | After Oct 2002 | |||||||||||
| 31 | 113023 | Bush LH | 1 | • | |||||||||||
| 32 | 500828 | Spacer | 1 | • | |||||||||||
| 33 | 113022 | Bush RH | 1 | • | |||||||||||

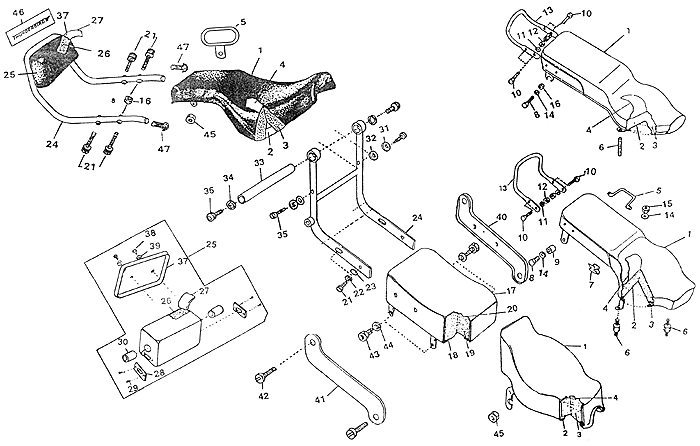

Seat Assembly
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 142130 | Seat Assembly | 1 | • | • | ||||||||||
| 142503/A | Seat Assembly | 1 | • | • | • | • | • | ||||||||
| 801137 | Seat Assembly, Rider - Black | 1 | • | • | • | ||||||||||
| 810007 | Seat Assembly, Rider - Gray | 1 | • | • | • | ||||||||||
| 817001 | Seat Assembly, Rider - Maroon | 1 | • | • | • | ||||||||||
| 521113/B | Seat Assembly | 1 | • | ||||||||||||
| 2 | 801016 | Seat Pan Assembly | 1 | • | • | ||||||||||
| 801055 | Seat Pan Assembly | 1 | • | • | • | • | • | ||||||||
| 801071 | Seat Pan Assembly, Rider | 1 | • | • | • | ||||||||||
| 521081/A | Seat Pan Assembly | 1 | • | ||||||||||||
| 3 | 140587 | Seat Cushion | 1 | • | • | ||||||||||
| 142509 | Seat Cushion | 1 | • | • | • | • | • | ||||||||
| 170193 | Seat Cushion, Rider | 1 | • | • | • | ||||||||||
| 521082/B | Seat Cushion | 1 | • | ||||||||||||
| 4 | 143576 | Seat Cover | 1 | • | • | ||||||||||
| 142516 | Seat Cover | 1 | • | • | • | • | • | ||||||||
| 170293 | Seat Cover, Rider | 1 | • | • | • | ||||||||||
| 521157 | Seat Cover | 1 | • | ||||||||||||
| 5 | 111686 | Side Handle | 1 | • | • | • | • | • | • | • | |||||
| 521107/B | Side Handle | 1 | • | ||||||||||||
| 6 | 142138 | Stud, Seat Attachment | 2 | • | • | • | • | ||||||||
| 141507 | Stud | 2 | • | • | • | • | • | • | • | ||||||
| 7 | 141444 | Clip | 24 | • | • | • | • | • | • | • | |||||
| 8 | 142761 | Hex Screw M8 x 20 | 2 | • | • | • | • | • | • | • | |||||
| 9 | 143712 | Distance tube | 2 | • | • | ||||||||||
| 10 | 142274 | Hex screw | 2 | • | • | • | • | • | • | • | |||||
| 11 | 141061 | Washer | 4 | • | • | • | • | • | • | • | |||||
| 12 | 141060 | Nut | 4 | • | • | • | • | • | • | • | |||||
| 13 | 141654 | Pillion Handle | 1 | • | • | • | • | • | • | • | |||||
| 14 | 140437 | Washer | 4 | • | • | • | • | • | • | • | |||||
| 15 | 140079 | Nut | 2 | • | • | • | • | • | • | • | |||||
| 16 | 141051 | Hex Nut | 2 | • | • | • | • | ||||||||
| 17 | 801138 | Seat Assembly, Pillion, Black | 1 | • | • | • | |||||||||
| 810008 | Seat Assembly, Pillion, Gray | 2 | • | • | • | ||||||||||
| 817002 | Seat Assembly, Pillion, Maroon | 3 | • | • | • | ||||||||||
| 18 | 801072 | Seat Pan Assembly, Pillion | 1 | • | • | • | |||||||||
| 19 | 170194 | Seat Cushion, Pillion | 1 | • | • | • | |||||||||
| 20 | 170296 | Seat Cover, Pillion | 1 | • | • | • | |||||||||
| 21 | 142761 | Hex Screw M8 x 20 | 4 | • | • | • | |||||||||
| 521127 | Hex Socket Head Cap Screw M8 x 40 | 4 | • | ||||||||||||
| 22 | 140147 | Lock Washer | 4 | • | • | • | |||||||||
| 23 | 140080 | Plain Washer | 4 | • | • | • | • | ||||||||
| 24 | 170173 | Tube Assembly | 1 | • | • | • | |||||||||
| 521072/B | Tube - Back rest | 1 | • | ||||||||||||
| 25 | 801139 | Back Rest Assembly, Black | 1 | • | • | • | |||||||||
| 810009 | Back Rest Assembly, Gray | 1 | • | • | • | ||||||||||
| 817003 | Back Rest Assembly, Maroon | 1 | • | • | • | ||||||||||
| 521085/A | Back Rest Assembly | 1 | • | ||||||||||||
| 26 | 170260 | Cushion, Back Rest | 1 | • | • | • | |||||||||
| 521074/A | Cushion, Back Rest | 1 | • | ||||||||||||
| 27 | 170297 | Cover, Back Rest | 1 | • | • | • | |||||||||
| 521126 | Cover, Back Rest | 1 | • | ||||||||||||
| 28 | 170198 | Stopper, Back Rest | 1 | • | • | • | |||||||||
| 29 | 170218 | Tapping Screw | 4 | • | • | • | |||||||||
| 30 | 170199 | Guide Bush | 2 | • | • | • | |||||||||
| 31 | 143409 | Plain Washer | 2 | • | • | • | |||||||||
| 32 | 170267 | Undulated Washer | 2 | • | • | • | |||||||||
| 33 | 170192 | Pivot Rod | 1 | • | • | • | |||||||||
| 34 | 170219 | Plain Washer | 2 | • | • | • | |||||||||
| 35 | 170190 | Stopper Pin | 2 | • | • | • | |||||||||
| 36 | 170294 | Allen Screw | 2 | • | • | • | |||||||||
| 37 | 170217 | Cover Plate, Back rest | 1 | • | • | • | |||||||||
| 521073/A | Cover Plate, Back rest | 1 | • | ||||||||||||
| 38 | 124539 | Slotted Cheese Head Screw M5 x 10 | 2 | • | • | • | |||||||||
| 39 | 142023 | Washer | 2 | • | • | • | |||||||||
| 40 | 170211 | Side Decor LH | 1 | • | • | • | |||||||||
| 41 | 170212 | Side Decor RH | 1 | • | • | • | |||||||||
| 42 | 142894 | Slotted Cheese head Screw M6 x 10 | 4 | • | • | • | |||||||||
| 43 | 142258 | Hex Screw M8 x 16 | 4 | • | • | • | |||||||||
| 44 | 140080 | Washer | 4 | • | • | • | |||||||||
| 45 | 140302 | Nut | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 46 | 521086 | Monogram, Back Rest | 1 | • | |||||||||||
| 47 | 521110/B | Plug | 2 | • | |||||||||||

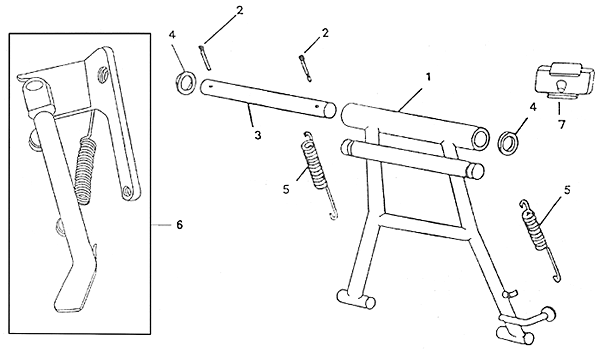

Stand
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 801215 | Centre Stand | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 801277 | Centre Stand | 1 | • | ||||||||||||
| 2 | 141230 | Split Pin | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 3 | 141233 | Spindle | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 4 | 141234 | Spacer | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 5 | 144766 | Spring | 2 | • | • | • | • | • | • | • | • | • | • | ||
| 145486/A | Spring | 2 | • | ||||||||||||
| 6 | 144096 | Side Stand Assembly | 1 | • | • | • | • | • | • | • | • | • | • | Before July 2001 | |
| 145413/C | Side Stand Assembly | 1 | • | • | • | • | • | • | • | • | • | • | After July 2001 | ||
| 145680 | Side Stand Assembly (Chromed) | 1 | • | • | |||||||||||
| 7 | 145186/C | Rubber Stop | 1 | • | • | • | • | • | • | • | • | • | • | • | |
Brake Pedal and Footrest
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 801031 | Brake Pedal | 1 | • | • | • | |||||||||
| 111375 | Brake Pedal | 1 | • | • | • | • | • | • | • | ||||||
| 521130/A | Brake Pedal | 1 | • | ||||||||||||
| 2 | 110300 | Stud, Brake Pedal Fulcrum | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 3 | 140305 | Washer | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 4 | 140384 | Nut | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 5 | 113027 | Brake Spindle | 1 | • | |||||||||||
| 6 | 113072 | Grease Nipple BM 6 x 1 | 1 | • | |||||||||||
| 7 | 113028 | Plain Washer | 1 | • | |||||||||||
| 8 | 113030 | Split Pin 1.6 x 25 | 1 | • | |||||||||||
| 9 | 113049 | Grease Nipple AM 6 x 1 | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 10 | 143657 | Hex Screw M6 x 35 | 1 | • | |||||||||||
| 11 | 113089/C | Lever Assy | 1 | • | |||||||||||
| 12 | 113086 | Hex Screw M8 x 25 | 1 | • | |||||||||||
| 13 | 111846 | Screw, Pedal Height Adjusting | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 14 | 141060 | Nut | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 15 | 110298 | Split Pin | 1 | • | • | • | • | • | • | • | • | • | |||
| 16 | 140206 | Washer | 1 | • | • | • | • | • | • | • | • | • | |||
| 17 | 140293 | Washer 3/8" | 1 | • | • | • | • | • | • | • | • | • | |||
| 18 | 140302 | Nut | 1 | • | • | • | • | • | • | • | • | • | |||
| 19 | 110170 | Tag Plate | 1 | • | • | • | • | • | • | • | • | • | |||
| 20 | 144008 | Brake Rod | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 21 | 144009 | Nut, Rear Brake Adjuster | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 22 | 140947 | Sleeve, Footrest | 2 | • | • | • | • | • | • | • | • | • | • | • | Before June 2002 |
| 145156/B | Sleeve, Footrest | 2 | • | • | • | • | • | • | • | • | • | • | • | After June 2002 | |
| 23 | 142114 | Nut | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 24 | 143409 | Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 25 | 801036 | Footrest Arm - Front LH | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 521056 | Footrest Arm - Front LH | 1 | • | ||||||||||||
| 26 | 145417/A | Footrest Bar | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 27 | 801035 | Footrest Arm - Front RH | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 28 | 801032 | Distance Tube RH | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 29 | 801034 | Distance Tube, Centre | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 30 | 145484/A | Boss, Side Stand | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 31 | 145485/A | Boss, Side Stand | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 32 | 801296 | Bracket, Brake Light Switch | 1 | • | |||||||||||
| 33 | 521078/A | Brake Light Switch with Lead | 1 | • | |||||||||||
| 34 | 801297 | Bracket, Brake Light Switch | 1 | • | |||||||||||

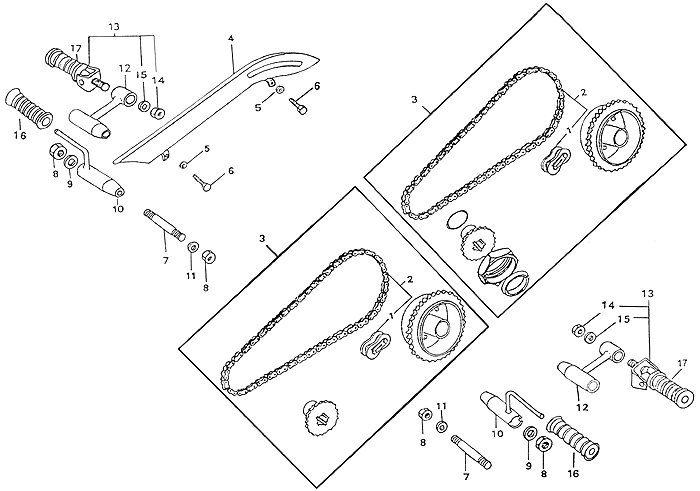

Rear Chain and Footrests
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 110333 | Connecting Link | 1 | • | • | • | |||||||||
| 145854 | Connecting Link ('O' Ring Chain) | 1 | • | • | • | • | • | • | • | ||||||
| 2 | 112011 | Drive Chain | 1 | • | • | • | • | • | • | • | |||||
| 145556/A | Drive Chain ('O' Ring Type) | 1 | • | • | • | • | • | • | • | ||||||
| 112212 | Drive Chain | 1 | • | • | • | • | |||||||||
| 3 | 112146 | Chain and Sprocket Kit (16T) | 1 | • | • | • | • | • | • | ||||||
| 597237 | Chain and Sprocket Kit ('O' Ring F.D. Sprocket)(16T) | 1 | • | • | • | • | • | • | |||||||
| 597275 | Chain and Sprocket Kit ('O' Ring) (16T) | 1 | • | • | • | • | • | • | |||||||
| 597162 | Chain and Sprocket Kit (17T) | 1 | • | • | |||||||||||
| 597156 | Chain and Sprocket Kit (18T) | 1 | • | • | |||||||||||
| 4 | 111713 | Chain Guard (Painted) | 1 | • | • | • | • | • | • | • | |||||
| 111712 | Chain Guard (Plated) | 1 | • | • | • | ||||||||||
| 5 | 140147 | Lock Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 6 | 111715 | Bolt | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 7 | 110360 | Stud, Foot Rest | 2 | • | • | ||||||||||
| 8 | 110365 | Nut | 4 | • | • | • | • | • | • | • | • | • | • | • | |
| 9 | 110366 | Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 10 | 801038 | Foot Rest | 2 | • | • | ||||||||||
| 11 | 140305 | Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 12 | 801062 | Foot Rest Support | 2 | • | • | • | • | • | • | • | • | • | |||
| 13 | 142502 | Foot Rest Assy | 2 | • | • | • | • | • | • | • | • | • | Before Jan 2001 | ||
| 145160/A | Foot Rest Assy | 2 | • | • | • | • | • | • | • | • | • | • | • | For 350 after Sept 2002 | |
| 14 | 142114 | Nut | 2 | • | • | • | • | • | • | • | • | • | • | • | For 350 after Sept 2002 |
| 15 | 143407 | Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | For 350 after Sept 2002 |
| 16 | 140947 | Rubber Sleeve | 2 | • | • | Before April 2000 | |||||||||
| 145156/A | Rubber Sleeve | 2 | • | • | From April 2000 to Sept 2002 | ||||||||||
| 17 | 145159/C | Sleeve, Pillion foot rest | 2 | • | • | • | • | • | • | • | • | • | • | • | For 350 after Sept 2002 |

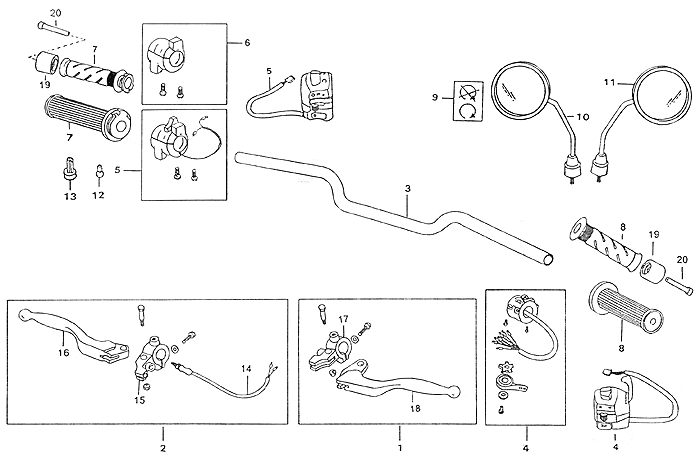

Handle Bar and Controls
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| 1 | 145410 | Lever Assembly LH | 1 | • | • | • | • | • | • | • | |||||
| 170565/A | Lever Assembly LH | 1 | • | • | |||||||||||
| 560147 | Lever Assembly LH | 1 | • | ||||||||||||
| 521152 | Lever Assembly LH | 1 | • | ||||||||||||
| 560558 | Lever Assembly LH (For disc brake bikes) | 1 | • | ||||||||||||
| 560543 | Lever Assembly LH (For disc brake bikes) | 1 | • | • | |||||||||||
| 2 | 145422/A | Lever Assembly RH | 1 | • | • | • | • | • | • | • | |||||
| 170566/A | Lever Assembly RH | 1 | • | • | |||||||||||
| 560163/A | Lever Assembly RH | 1 | • | ||||||||||||
| 521158/A | Lever Assembly RH | 1 | • | ||||||||||||
| 3 | 110119 | Handle Bar | 1 | • | • | ||||||||||
| 123790 | Handle Bar | 1 | • | • | • | • | • | ||||||||
| 170202 | Handle Bar | 1 | • | • | • | ||||||||||
| 170203 | Handle Bar | 1 | • | Before Dec 2002 | |||||||||||
| 170203/B | Handle Bar | 1 | • | After Dec 2002 | |||||||||||
| 4 | 144353 | Switch Assembly LH | 1 | • | • | • | • | • | • | • | |||||
| 170277 | Switch Assembly LH | 1 | • | • | • | ||||||||||
| 560114 | Switch Assembly LH | 1 | • | ||||||||||||
| 5 | 170359 | Switch Assembly RH | 1 | • | • | ||||||||||
| 560115 | Switch Assembly RH | 1 | • | ||||||||||||
| 521023/B | Switch Assembly RH | 1 | • | ||||||||||||
| 6 | 210776 | Rotor Body Assembly | 1 | • | • | • | • | • | • | • | |||||
| 7 | 145193 | Rotor Assembly | 1 | • | • | • | • | • | • | • | • | For Bul 350, After Sept 2002 | |||
| 170131 | Rotor Assembly | 1 | • | • | |||||||||||
| 560105/A | Rotor Assembly | 1 | • | ||||||||||||
| 521185/A | Rotor Assembly | 1 | • | After Dec 2002 | |||||||||||
| 8 | 145192 | Dummy Grip | 1 | • | • | • | • | • | • | • | • | For Bul 350, After Sept 2002 | |||
| 170130 | Dummy Grip | 1 | • | • | • | ||||||||||
| 521186/A | Dummy Grip | 1 | • | After Dec 2002 | |||||||||||
| 9 | 521139/A | Sticker, Ignition Off | 1 | • | |||||||||||
| 10 | 143357 | Rear View Mirror LH | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 521143/A | Rear View Mirror LH | 1 | • | ||||||||||||
| 11 | 143358 | Rear View Mirror RH | 1 | • | • | • | • | • | • | • | • | • | |||
| 521144/A | Rear View Mirror RH | 1 | • | ||||||||||||
| 12 | 143314 | Bush, Cable stop, Throttle | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 13 | 560116/A | Ferrule (De Compressor) | 1 | • | |||||||||||
| 14 | 143350 | Front Brake Light Switch | 1 | • | • | • | • | • | • | • | |||||
| 170504 | Front Brake Light Switch | 1 | • | • | • | • | |||||||||
| 15 | 143348 | Front Brake Lever Bracket | 1 | • | • | • | • | • | • | • | |||||
| 16 | 143349 | Front Brake Lever | 1 | • | • | • | • | • | • | • | |||||
| 17 | 143332 | Clutch Lever Bracket | 1 | • | • | • | • | • | • | • | |||||
| 18 | 143333 | Clutch Lever | 1 | • | • | • | • | • | • | • | |||||
| 19 | 521201/A | Damper Weight | 2 | • | After Dec 2002 | ||||||||||
| 20 | 521202/A | Hex Socket Head Cap Screw M8 x 50 | 2 | • | After Dec 2002 | ||||||||||

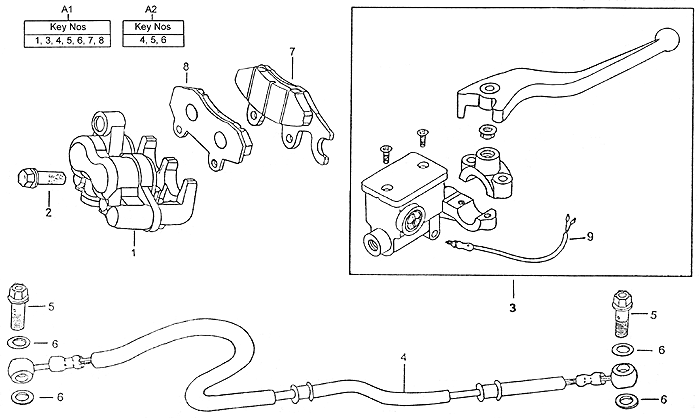

Master Cylinder and Caliper
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| A1 | 560547/A | Disc Brake Assembly | 1 | • | • | ||||||||||
| 560510/A | Disc Brake Assembly | 1 | • | ||||||||||||
| A2 | 560540 | Brake Hose Assembly | 1 | • | • | ||||||||||
| 560541 | Brake Hose Assembly | 1 | • | ||||||||||||
| 1 | 560512/A | Caliper Assembly | 1 | • | • | • | |||||||||
| 2 | 560545/A | Hex Flange Bolt M8 x 30 | 2 | • | • | • | |||||||||
| 3 | 560542/A | Master Cylinder | 1 | • | • | ||||||||||
| 560513/A | Master Cylinder | 1 | • | ||||||||||||
| 4 | 560514/A | Brake Hose | 1 | • | • | ||||||||||
| 560529/A | Brake Hose | 1 | • | ||||||||||||
| 5 | 560534/A | Banjo Bolt | 2 | • | • | ||||||||||
| 6 | 560535/A | Washer | 4 | • | |||||||||||
| 7 | 560533 | Brake Pad RH | 1 | • | • | • | |||||||||
| 8 | 560536 | Brake Pad LH | 1 | • | • | • | |||||||||
| 9 | 560570 | Front Brake light switch | 1 | • | • | • | |||||||||
| 560569 | Front Brake light switch | 1 | • | • | • | ||||||||||
Head Lamp Casing
| Key No. | Part No. | Description | Qty. | Bullet | Mach 350 | 500 | Lightning | T'bird | Remarks | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | Dlx | Mac | Cam | Elec | 500 | 535 | 535ES | ||||||||
| A1 | 141690 | Fork and Casing Assembly | 1 | • | • | • | • | • | • | ||||||
| A2 | 597010 | Ball Race Kit | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| A3 | 597204 | Ball Race Kit with Cover | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| A4 | 597119 | Head Lamp Holder Kit | 1 | • | • | • | |||||||||
| 1 | 144603 | Cover | 1 | • | • | • | • | • | • | • | • | • | • | • | Before May 2001 |
| 145446/A | Cover | 1 | • | • | • | • | • | • | • | • | • | • | • | After May 2001 | |
| 2 | 144583 | Ball Race, Head Lamp Casing | 1 | • | • | • | • | • | • | • | • | • | • | ||
| 3 | 140201 | Ball 1/4" | 38 | • | • | • | • | • | • | • | • | • | • | • | |
| 4 | 144582 | Ball race, Frame | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 5 | 144581 | Ball Race | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 6 | 801275 | Steering Stem | 1 | • | • | • | • | • | • | • | |||||
| 801067 | Steering Stem | 1 | • | • | |||||||||||
| 801269 | Steering Stem | 1 | • | ||||||||||||
| 804024 | Steering Stem | 1 | • | ||||||||||||
| 7 | 140080 | Washer | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 8 | 141051 | Nut | 2 | • | • | • | • | • | • | • | • | • | • | • | |
| 9 | 845001 | Number Plate, Front | 1 | • | • | • | • | • | • | • | • | • | • | • | |
| 10 | 111901/A | Hex Screw | 2 | • | • | • | • | • | • | • | |||||
| 140580 | Hex Screw | 2 | • | • | • | • | |||||||||
| 11 | 140553 | Plug Screw | 2 | • | • | • | • | • | |||||||
| 140558 | Plug Screw | 2 | • | • | |||||||||||
| 12 | 150254 | 'O' Ring | 2 | • | • | • | • | • | • | • | |||||
| 13 | 110116 | Lock Nut | 1 | • | • | • | • | • | • | • | |||||
| 14 | 140189 | Washer | 1 | • | • | • | • | • | • | • | |||||
| 15 | 144945 | Washer | 2 | • | • | • | • | • | • | • | |||||
| 16 | 143823 | Screw | 2 | • | • | • | • | • | • | • | |||||
| 17 | 143818 | Stud | 2 | • | • | • | • | • | • | • | |||||
| 18 | 140206 | Washer | 2 | • | • | • | • | • | • | • | |||||
| 19 | 143825 | Nut | 2 | • | • | • | • | • | • | • | |||||
| 20 | 140202 | Clip, Handle Bar | 1 | • | • | • | • | • | • | • | |||||
| 21 | 140195 | Sleeve, Threaded | 1 | • | • | • | • | • | • | • | |||||
| 22 | 140196 | Sleeve, Plain | 1 | • | • | • | • | • | • | • | |||||
| 23 | 140194 | Allen Bolt | 1 | • | • | • | • | • | • | • | |||||
| 24 | 500809 | Adaptor | 1 | • | • | • | • | • | • | • | |||||
| 25 | 140193 | Rubber Spacer | 2 | • | • | • | • | • | • | • | |||||
| 26 | 143906 | Bush | 2 | • | • | • | • | • | |||||||
| 124564 | Bush | 2 | • | • | • | • | • | • | |||||||
| 27 | 801006 | Cover Tube, Black | 2 | • | • | • | |||||||||
| 802002 | Cover Tube, P.O. Red | 2 | • | ||||||||||||
| 803002 | Cover Tube, Peacock Blue | 2 | • | ||||||||||||
| 806002 | Cover Tube, Athena Gray | 2 | • | ||||||||||||
| 170346 | Cover Tube, Short | 2 | • | • | • | • | • | • | |||||||
| 521067/A | Cover Tube, Short | 2 | • | ||||||||||||
| 28 | 124168 | Clamp | 2 | • | • | • | • | ||||||||
| 29 | 141051 | Nut | 4 | • | • | • | • | ||||||||
| 30 | 124169 | Stud | 4 | • | • | • | • | ||||||||
| 31 | 801100 | Head Bracket | 1 | • | • | • | |||||||||
| 804023 | Head Bracket | 1 | • | ||||||||||||
| 32 | 170183 | Head Lamp Holder LH | 1 | • | • | • | |||||||||
| 521131/A | Head Lamp Holder LH | 1 | • | ||||||||||||
| 33 | 170182 | Head Lamp Holder RH | 1 | • | • | • | |||||||||
| 521132/A | Head Lamp Holder RH | 1 | • | ||||||||||||
| 34 | 170299 | Grommet | 1 | • | • | • | |||||||||
| 35 | 521162 | Cup | 1 | • | |||||||||||
| 36 | 170215 | Lock Nut | 1 | • | • | • | |||||||||
| 521134/A | Lock Nut | 1 | • | ||||||||||||
| 37 | 170214 | Taper Lock Nut | 1 | • | • | • | |||||||||
| 521133/A | Taper Lock Nut | 1 | • | ||||||||||||
| 38 | 111251 | Hex, Screw | 2 | • | • | • | • | ||||||||
| 39 | 111252 | Washer | 2 | • | • | • | • | ||||||||
| 40 | 801124 | Head Lamp Casing | 1 | • | • | • | |||||||||
| 802019 | Head Lamp Casing | 1 | • | ||||||||||||
| 803012 | Head Lamp Casing | 1 | • | ||||||||||||
| 839007 | Head Lamp Casing | 1 | • | ||||||||||||
| 838007 | Head Lamp Casing | 1 | • | ||||||||||||
| 843001 | Head Lamp Casing | 1 | • | ||||||||||||
| 836019 | Head Lamp Casing | 1 | • | ||||||||||||
| 812005 | Head Lamp Casing | 1 | • | ||||||||||||
| 827002 | Head Lamp Casing | 1 | • | ||||||||||||
| 830002 | Head Lamp Casing | 1 | • | ||||||||||||
| 806013 | Head Lamp Casing | 1 | • | ||||||||||||
| 41 | 560516/A | Clamp Hose (For disc brake bikes) | 1 | • | • | • | |||||||||
