Piston - Barrel
Please Note: When ordering parts please quote:
Part No. and number required, model, year and country type (Royal Enfield
exports the following main country types: Indian, European and USA/Canada).
Differences between models are indicated.
Once you have decided on your requirements email
us.
Piston
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| 1 |
110085 |
Piston assy + Rings - Standard |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 500240/K |
Piston assy + Rings - Standard |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 170442 |
Piston assy + Rings - Standard |
1 |
|
|
|
|
|
|
• |
• |
|
|
|
|
| 11825 |
Piston assy + Rings - .020" O/S |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 142935 |
Piston assy + Rings - .020" O/S |
1 |
|
|
|
|
|
|
• |
• |
|
|
|
|
| 111826 |
Piston assy + Rings - .040" O/S |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 2 |
500202 |
Piston - Standard |
1 |
|
|
|
|
• |
|
|
|
|
|
• |
|
| 144162 |
Piston - Standard |
1 |
|
|
|
|
|
|
|
|
• |
• |
|
|
| 170406 |
Piston - 020" O/S |
1 |
|
|
|
|
|
|
• |
• |
|
|
|
|
| 3 |
112052 |
Piston ring set - Standard |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 500241 |
Piston ring set - Standard |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 142804 |
Piston ring set - Standard |
1 |
|
|
|
|
|
|
• |
• |
|
|
|
|
| 144164 |
Piston ring set - Standard |
1 |
|
|
|
|
|
|
|
|
• |
• |
|
|
| 112053 |
Piston ring set - .020" O/S |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 142805 |
Piston ring set - .020" O/S |
1 |
|
|
|
|
|
|
• |
• |
|
|
|
|
| 112054 |
Piston ring set - .040" O/S |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 4 |
110090 |
Gudgeon pin |
1 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 500206 |
Gudgeon pin |
1 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 170402 |
Gudgeon pin |
1 |
|
|
|
|
|
|
• |
• |
|
|
|
|
| 144168 |
Gudgeon pin |
1 |
|
|
|
|
|
|
|
|
• |
• |
|
|
| 5 |
110091 |
Circlip - Gudgeon pin (IPL) |
2 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 110018 |
Circlip - Gudgeon pin (Escorts) |
2 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 500207 |
Circlip - Gudgeon pin |
2 |
|
|
|
|
|
• |
|
|
|
|
• |
|
| 170401 |
Circlip - Gudgeon pin |
2 |
|
|
|
|
|
|
• |
• |
|
|
|
|
| 144145 |
Circlip - Gudgeon pin |
2 |
|
|
|
|
|
|
|
|
• |
• |
|
|
[top]

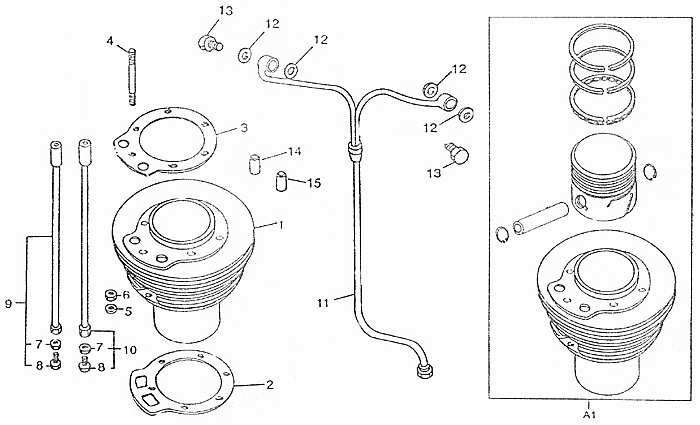

Barrel
