Indian Bullet Spares Catalogue - Suspension System
Front Forks -
Chain Stay and
Shock Assembly
Please Note: When ordering parts please quote:
Part No. and number required, model, year and country type (Royal Enfield
exports the following main country types: Indian, European and USA/Canada).
Differences between models are indicated.
Once you have decided on your requirements email
us.
Front Forks
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| A1 |
144294 |
Oil Seal Kit |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| A2 |
597203 |
Oil Seal Kit |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 1 |
141681 |
Fork End RH Assy |
1 |
• |
• |
• |
|
|
|
• |
|
|
|
|
Before Oct 1999 |
| 144420 |
Fork End RH Assy |
1 |
• |
• |
• |
|
|
|
• |
|
|
|
|
After Oct 1999 |
| 170363 |
Fork End RH Assy |
1 |
|
|
|
• |
• |
• |
• |
• |
• |
|
|
|
| 521155 |
Fork End RH Assy |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 560527 |
Fork End RH Assy (for Disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 2 |
141682 |
Fork End LH Assy |
1 |
• |
• |
• |
|
|
|
• |
|
|
|
|
Before Oct 1999 |
| 144421 |
Fork End LH Assy |
1 |
• |
• |
• |
|
|
|
• |
|
|
|
|
After Oct 1999 |
| 170362 |
Fork End LH Assy |
1 |
|
|
|
• |
• |
• |
• |
• |
• |
|
|
|
| 521154 |
Fork End LH Assy |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 560528 |
Fork End LH Assy (for Disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 3 |
143899 |
Spring, Long |
2 |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
Before Oct 1999 |
| 144219 |
Spring, Long |
2 |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
After Oct 1999 |
| 142867 |
Spring, Long |
2 |
|
|
|
|
|
|
• |
• |
• |
• |
• |
|
| 4 |
140338 |
'O' Ring |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 5 |
144472 |
Main Tube |
2 |
|
|
|
|
|
• |
• |
• |
• |
• |
• |
|
| 144467 |
Main Tube |
2 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 6 |
141414 |
Nut, Spring Guide |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 7 |
110143 |
Spring Guide |
2 |
• |
• |
• |
• |
• |
|
|
|
|
|
|
|
| 142868 |
Spring Guide |
2 |
|
|
|
|
|
• |
• |
• |
• |
• |
• |
|
| 8 |
140184 |
Valve Plate |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 9 |
140185 |
Circlip |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 10 |
141428 |
Stud, Front fork spring |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 11 |
143898 |
Spring, Short |
2 |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
|
| 12 |
142239 |
Spacer |
2 |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
|
| 13 |
141417 |
Circlip |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 14 |
140219 |
Valve Plate |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 15 |
124346 |
Valve Port |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 16 |
141421 |
Oil Control Collar |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 17 |
170121/B |
Gaiter |
2 |
|
|
|
• |
• |
• |
|
• |
• |
• |
• |
|
| 18 |
170122 |
Ring Clamp |
2 |
|
|
|
• |
• |
• |
|
• |
• |
• |
• |
|
| 560518/A |
Ring Clamp LH (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 19 |
124342 |
Circlip |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 20 |
144468 |
Oil Seal |
4 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 21 |
144469 |
Spacer |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 22 |
124339 |
Fork End RH |
1 |
• |
• |
• |
|
|
|
• |
|
|
|
|
|
| 170119 |
Fork End RH |
1 |
|
|
|
• |
• |
• |
|
• |
• |
• |
|
|
| 804025 |
Fork End RH |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 560508 |
Fork End RH (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 23 |
111901 |
Hex Bolt M8 x 65 (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
Before Sept 2002 |
| 560564 |
Hex Bolt M8 x 65 (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
After Sept 2002 |
| 24 |
140080 |
Washer (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
Before Sept 2002 |
| 141061 |
Washer (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
After Sept 2002 |
| 25 |
142182 |
Nylock Nut (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
Before Sept 2002 |
| 141306 |
Nylock Nut (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
After Sept 2002 |
| 26 |
140403 |
Stud, Mudguard Stay |
3 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 27 |
140404 |
Stud, Mudguard Stay |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 28 |
110121 |
Lug Cap |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 29 |
140177 |
Stud |
4 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 30 |
140147 |
Washer, Shake proof |
4 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 31 |
140178 |
Nut, Fork End Stud |
4 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 32 |
144601 |
Washer |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
Before May 1999 |
| 144846 |
Washer, Copper |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
After May 1999 |
| 33 |
140186 |
Nut, Fork Spring Stud |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 34 |
124341 |
Fork End LH |
1 |
• |
• |
• |
|
|
|
• |
|
|
|
|
|
| 170120 |
Fork End LH |
1 |
|
|
|
• |
• |
• |
• |
• |
• |
|
|
|
| 804024 |
Fork End LH |
1 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 560503 |
Fork End LH (For disc brake bikes) |
1 |
|
|
|
|
• |
• |
|
|
|
|
• |
|
| 35 |
141192 |
Stud, Cable Adjuster |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
[top]

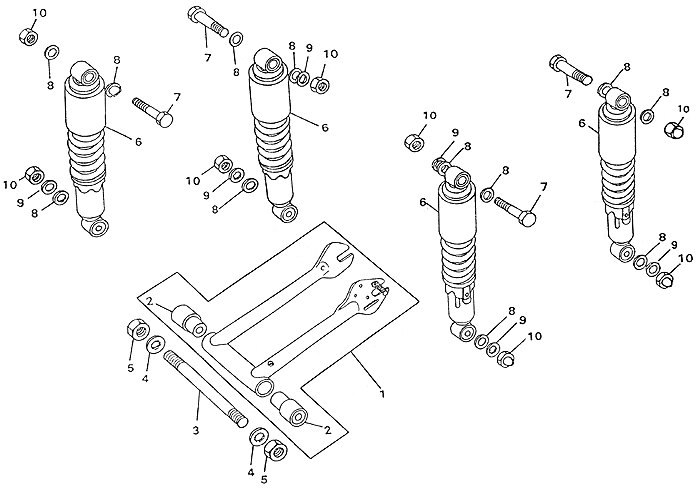

Chain Stay and Shock Assembly
| Key No. |
Part No. |
Description |
Qty. |
Bullet |
Bu. Mach 350 |
Bu. 500 |
Lightning |
T'bird |
Remarks |
| 350 |
Dlx |
Mac |
Cam |
Elec |
500 |
535 |
535ES |
| 1 |
111721 |
Chain Stay Complete with Bush |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 2 |
110643 |
Bush |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 3 |
111201 |
Stud, Chain Stay Bearing |
1 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 4 |
140306 |
Washer, Shake Proof |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 5 |
111810 |
Nut |
2 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 6 |
142800 |
Shock Absorber |
2 |
• |
• |
• |
• |
• |
• |
• |
|
|
|
|
|
| 170290 |
Shock Absorber |
2 |
|
|
|
|
|
|
|
• |
• |
• |
|
|
| 521061/B |
Shock Absorber |
2 |
|
|
|
|
|
|
|
|
|
|
• |
|
| 7 |
111696 |
Bolt |
2 |
• |
• |
• |
|
|
• |
• |
|
|
|
|
|
| 170399 |
Bolt |
2 |
|
|
|
• |
• |
|
|
• |
• |
• |
• |
|
| 8 |
140304 |
Washer |
6 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 9 |
140303 |
Washer |
4 |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
• |
|
| 10 |
142181 |
Nylock Nut |
4 |
• |
• |
• |
|
|
• |
• |
|
|
|
|
|
| 170352 |
Dome Nut |
4 |
|
|
|
• |
• |
|
|
• |
• |
• |
• |
|
